Aliplast - FR90 Windows
Fire-resistant system
Fire resistant systems are used to create safe zones where the fire, smoke and heat are retained for as long as possible. In the valuation of the standards, the letter E stands for the ability to stop flames, the letter W for the ability to limit heat radiation and letter I for the ability to block heat conduction.
In the valuation the number stands for the time period in minutes.

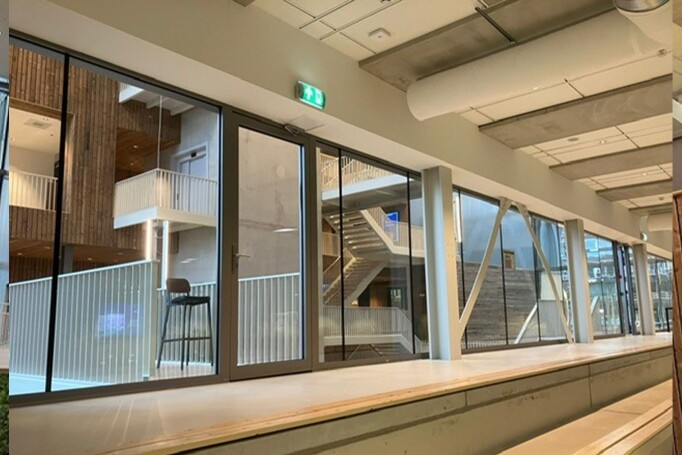

With a resistance class of EI30 and EI60, the FR90 is extremely suitable as fire-resistant interior doors. In apartments, offices, schools, etc., it offers residents and visitors the opportunity to leave the building in a quiet and safe way
| Outer frame built-in depth | 90 mm |
| Sash built-in depth | 90 mm |
| Outer frame glazing | 20 mm - 69 mm |
| Sash glazing | 20 mm - 69 mm |
| Insulation value UW | 2,0 W/m²K (1230 mm x 1480 mm; UG: 1.0 W/m²K & PSI: 0.036 W/mK, profiles : FR101-FR101) |
| Insulation value UF | 3,2 W/m²K |
| Watertightness | E1200A (NBN EN 12208) |
| Airtightness | 4 (NBN EN 12207) |
| Wind resistance | C1 (NBN EN 12210) |
| Acoustic | 39 - 47dB (-1;-3) |
| Fire-resistance | EW30 - EW60 - EI30 - EI60 |
- Fire resistant system class EW30 - EW60 - EI30 - EI60
- Internal and external rotating element
