Aliplast - FR 90 Doors

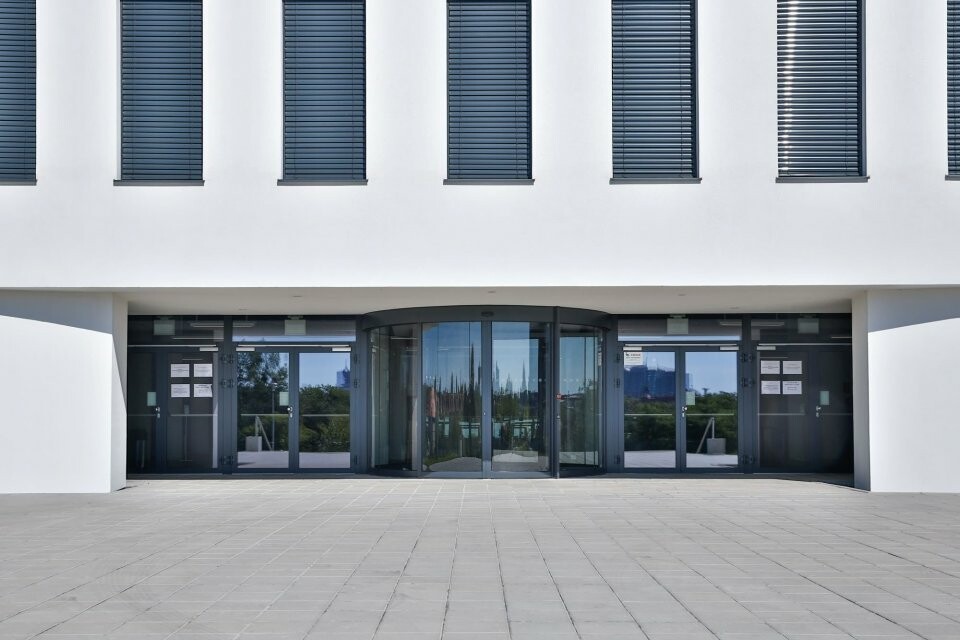

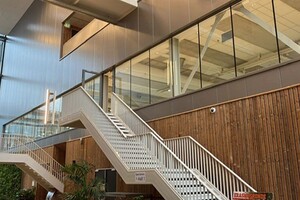

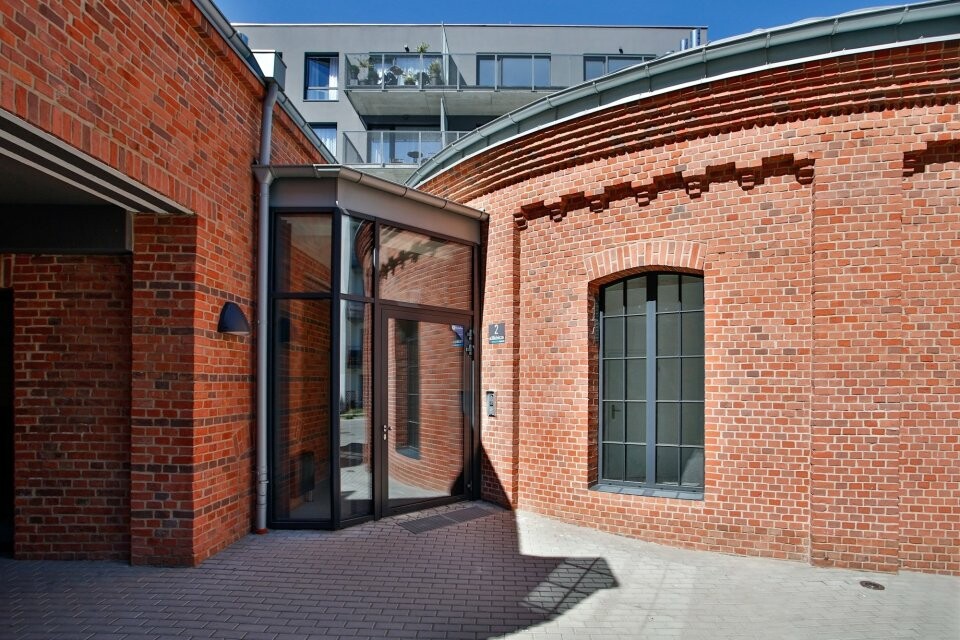

Thermally insulated fire protection system; structures designed on the basis of the FR90 system feature fire rating for walls EI30, EI60, EI 90, EI120, and fire rating for doors EI30, EI60, EI90

  • application: indoor and outdoor installations
  • installation depth: 90 mm
  • symmetrically designed profile, inner chamber filled with gypsum infill elements (between thermal separation sheets) – for EI30; all chambers filled with gypsum – for EI60
  • compatible with systems with the installation depth of 90 mm (STAR)
  • possibility of using a triple glazing unit (glazing: 20 mm to 69 mm)
  • option of panel infill (panel thickness 60 mm):
    - mineral wool filed panels (Up = 0.57 W/m2K)
    - gypsum filled panels
  • structures: single and double doors, fixed glazing
  • maximum dimensions of the tested structure: 6000 x 3000 mm (fixed wall, single glass pane)
  • maximum dimensions of single-leaf doors: 1650 x 2870 mm
  • maximum dimensions of double-leaf doors: 3170 x 2870 mm
  • single-point and multi-point door locks, electric door strikes, panic hardware
  • cover plate hinges, roller hinges, Inox hinges
  • solutions with and without thresholds
  • door kick plates (high plinth block)
  • option of air vent installation
  • optimised profiles (one profile type for the door frame and leaf)
  • quick and simple prefabrication (no processing of the glazing bar)
  • acoustics – acoustic testing of double doors featuring fire rating EI30 and EI60 for indoor and outdoor installations: 39 to 47 dB
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

SYSTEM MATERIAL DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE TYPE OF WINDOWS TYPE OF DOORS
FR90 fix aluminium/polyamid 90 mm - fix 20-69 mm FIX -
FR90 door aluminium/polyamid 90 mm 90 mm door 20-69 mm - single sash door, double sash door

SYSTEM THERMAL INSULATION UF* AIR PERMEABILITY WINDLOAD RESISTANCE WATERTIGHTNESS
FR90 Uf from 2,145 W/m2K Class 4; EN 12207 Class C1/B2; EN 12210 Class 4A; EN12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling
